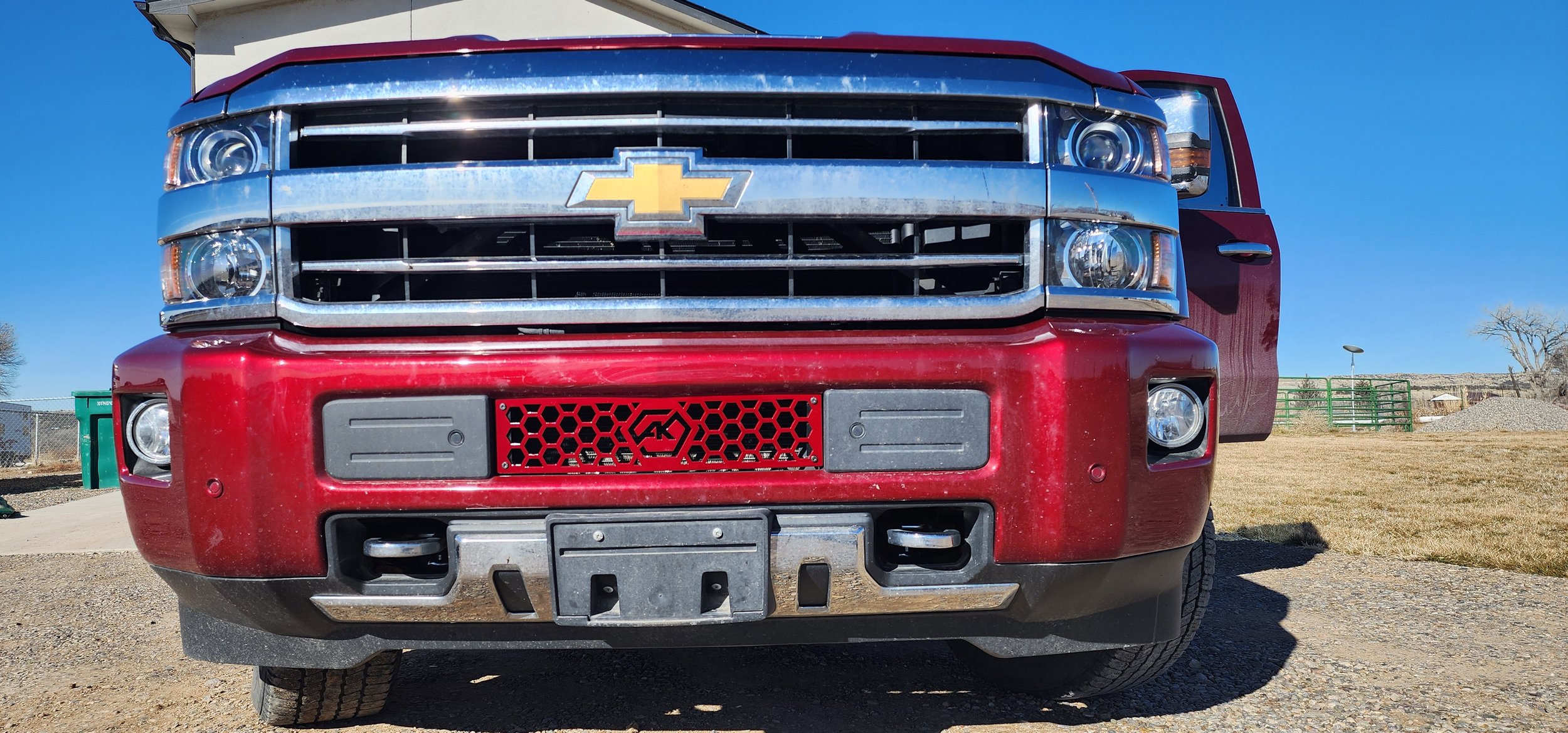

Chevrolet Silverado HD Bumper Grille Insert 15-19
Chevy did not do a good job of protecting the transmission cooler on the 2015-2019 HD trucks.
However, you can improve protection and give a personal touch to your truck's front end by using one of our bumper grille inserts.
We offer multiple designs made from 14 gauge steel. If you want a custom design, logo, or any other personalization, we can help with that too! Simply place your order, and we will reach out to you to discuss your needs.
The mounting hardware is included.
Install Instructions
Thank you for your order! Please see the installation instructions below to make your install as simple as possible!
Install the supplied U-Clips into the existing holes in the bumper frame with the threaded end facing the front of the truck.
Go ahead and thread in the 1/4-20 bolts into the u clips and get them just tight enough to still slide the angle brackets on.
Slide in the angle brackets tight to the outer edges of the bumper so the grille mounting holes are as far outboard as possible.
Tighten the 1/4-20 bolts.
Line the grille insert up and make sure your mounting holes align with the angle brackets. Adjust the angle brackets as necessary.
Install your grille with the 10-24 hardware and tighten everything up, you’re all set!
Any questions or issues give us a call!
